Manhole Covers > Pedestrian areas >
BM 6060

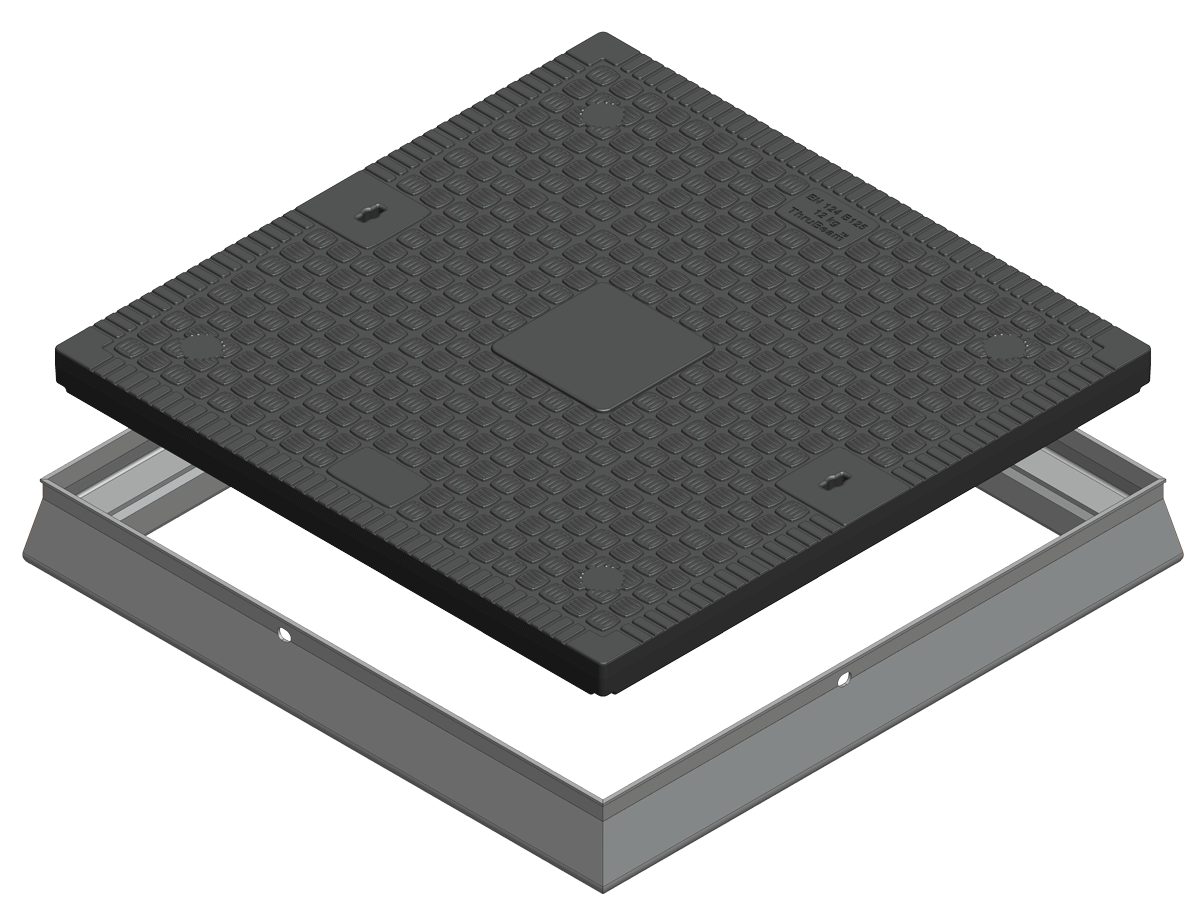

This cover and frame 600 x 600 mm clear opening is one of the most common sizes used across industry. Used mainly in pedestrian and associated areas as well as car parking decks.

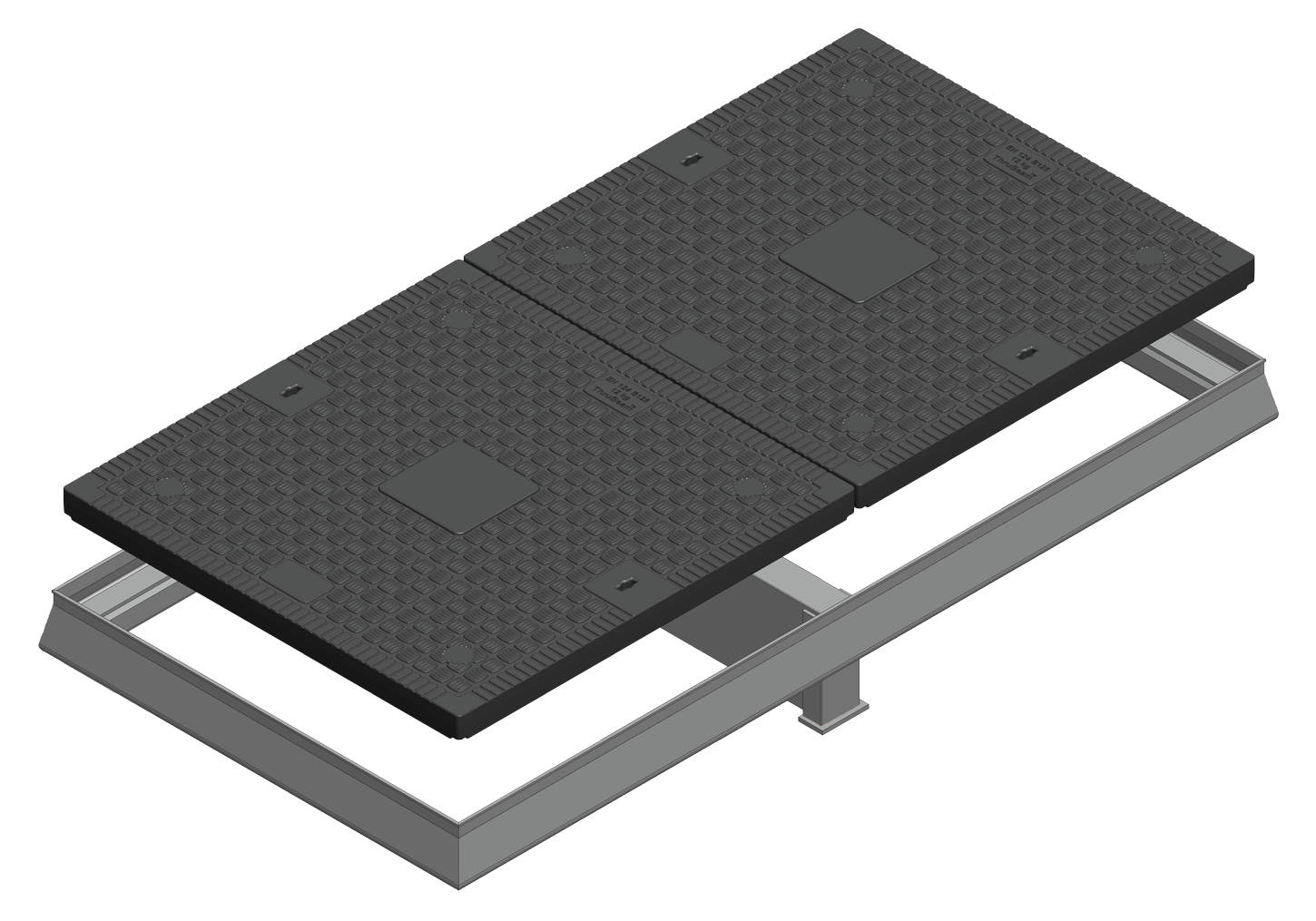

It can be supplied in multiples with a removable central beam for easy access.
All our covers can personalised with logos and information as required. The frames are designed in an unique SSC aluminium profile.
The Benefits of a Structural Science composite cover over traditional covers.
This cover and frame 600 x 600 mm clear opening is one of the most common sizes used across industry. Used mainly in pedestrian and associated areas as well as car parking decks.
It can be supplied in multiples with a removable central beam for easy access.
All our covers can personalised with logos and information as required. The frames are designed in an unique SSC aluminium profile.
The Benefits of a Structural Science composite cover over traditional covers.
- High structural performance
- Extended working life
- Permanent anti-slip
- Secure and lockable
- Injury free removal
- Reduced maintenance programmes
- Ventable
- Transparent to radio waves
- Non-corrosive
- Electrically non-conductive
- Client design service
- Pedestrian areas
- Car park decks
- Petrol forecourts
Cover Specifications
| Load Rating | EN124:1994 Class B125 |
| Clear Opening | 600mm x 600mm (23 5/8″ x 23 5/8″) |
| External dimensions | 660mm x 660mm x 69mm (26″ x 26″ x 2 3/4″) |
| Skid resistance (wet polishes) | PSRV 60 |
| Weight | 12 Kg (26.4 lbs) |
| Lifting points | Two moulded in key slots |
| Tread depth | Tread depth complies with EN124:1994 Class B125 |
| Tread type | Embedded Aggregate |
| Wear indicators | One embedded |
| Markings | Week, year and location of manufacture moulded into underside of cover. Cover size, weight on the top surface. |
| Corrosion / chemical resistance | All component parts are resistant to chemical attack, diesel, petrol, salt and water or a combination of the above over the lifespan of the cover. Surface discolouration is acceptable in service |
| Combustion properties | All component parts do not support combustion. Products of combustion do not contain harmful chemicals (eg bromides) |
| Sealed | No |
| Vented | No (vented covers available on request) |
| Carbon footprint | Low |
| Material | Advanced fibre glass composite |
| Client logo | Can be provided on top surface |
| Security features | Integrated restraint device |
Frame specification
| Load Rating | EN124:1994 Class B125 |
| Clear Opening | 600mm x 600mm (23 5/8″ x 23 5/8″) |
| Weight | 1.9 Kg (4.2 lbs) |
| External dimensions | 670mm x 670mm x 45mm (approx) |
| Material | Aluminum. |
| Installation details | See installation page here |
Designs and specifications are subject to alteration, so that continuous improvement can be undertaken
